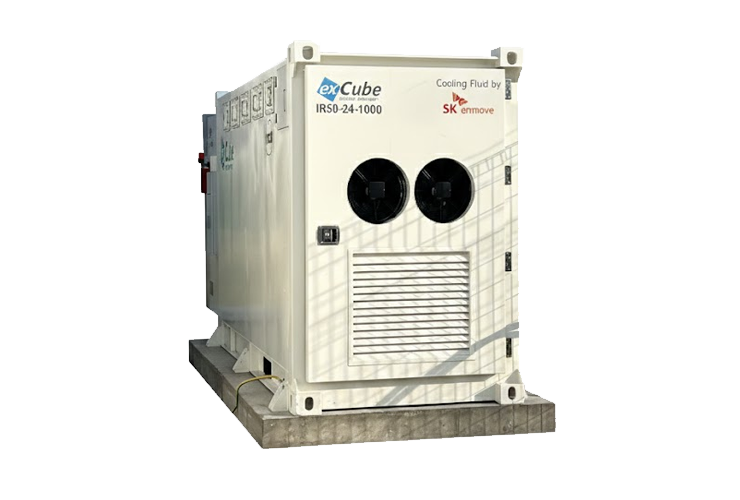

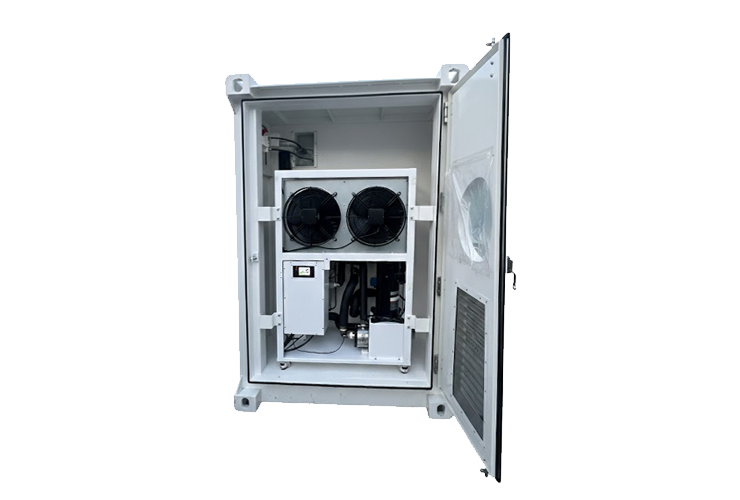

Battery Immersion cooling
ESS Battery Cooling Devices
DBi-4500 / DBi-9000 / DBDC-300 / DBDC-500
Features
Battery Immersion Cooling is a next-generation thermal management technology that effectively dissipates heat by directly submerging battery cells in a non-conductive (insulating) coolant
Fundamentally eliminates fire risks through rapid cooling and suffocation effects
Maximizes cooling performance by circulating the insulating oil externally
Immersion cooling technology prevents malfunctions and reacts instantly, ensuring fail-safe fire suppression
Product Specifications
| PRODUCT |
DBi-4500 |
DBi-9000 |
DBDC-300 |
DBDC-600 |
Power |
AC 380V-3PH-50/60HZ |
DC 24V |
Batterry Capacity |
500KW |
1000KW |
10KW |
10KW |
| Cooling Capacity |
~4,300Kcal/hr (~5kw) |
~8,500kcal/hr (9.8kw) |
~300kcal/hr (0.35kw) |
~600kcal/hr (0.7kw) |
| Compressor |
1.5HP |
3HP |
1/10HP |
1/5HP |
| Refrigerant |
R-134a / R-1234yf |
R-407C / R-32 |
R-134a |
| Dimension |
W×D×H |
700×400×1300 |
900×400×1550 |
430×250×150 |
| Heeater |
3KW |
3KW |
200W |
200W |
EDGE DATA CENTER SERVER Cooling Devices
Insulating Oil Type : DBi-4500 / DBi-9000 / DBDC-300 / DBDC-500
Water-Cooled Type : DWT-4500 / DWT-6000 / DWT-9000 / DWT-1500 / DWT-2250 / DWT-2900
Features

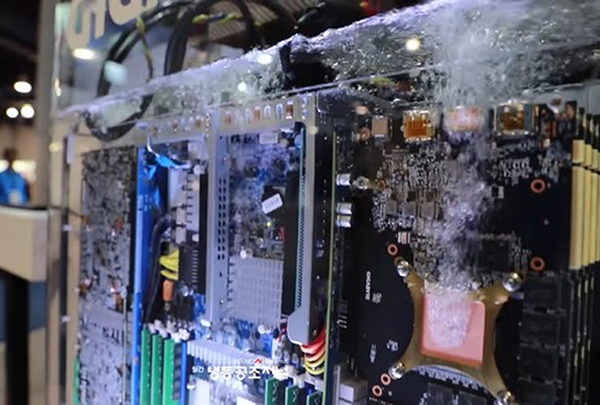

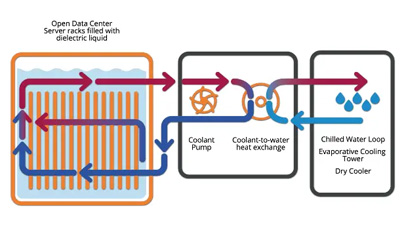

Immersion Cooling is an advanced technology that efficiently removes heat by directly submerging high-heat IT equipment, such as servers, into a non-conductive special liquid (cooling fluid)
Liquid Cooling: Essential for high-density environments of 10kW to 50kW or more, capable of lowering component temperatures by 15 to 30°C
Product Specifications
| PRODUCT |
DWT-4500 |
DWT-9000 |
DWT-15000 |
DWT-30000 |
Power |
AC 380V-3PH-50/60HZ |
|
|
| Cooling Capacity |
~4,300Kcal/hr (~5kw) |
~8,700kcal/hr (10kw) |
~14,200kcal/hr (16kw) |
~28,000kcal/hr (32kw) |
| Compressor |
1.5HP |
3HP |
5HP |
10HP |
| Refrigerant |
R-134a / R-1234yf |
R-407C / R-32 |
| Tank Volune(ℓ) |
30 |
60 |
90 |
180 |
| Dimension |
W×D×H |
580×800×950 |
640×1030×1200 |
650×1340×1500 |
800×1770×1850 |
